1400 1400

Description

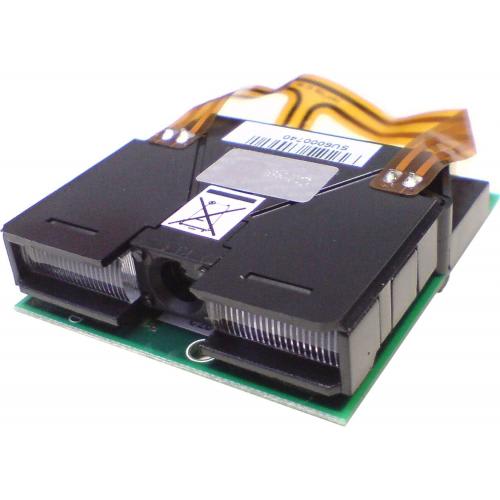

The CipherLab 1400 series CCD module provides a range of complete CCD engines with a small footprint, which directly integrate into third party equipment with great ease.

The onboard decoder delivers over 100 scans per second and provides decoded output through a CMOS RS232 interface. Main features include long range scanning, data editing, auto-sense and external trigger modes.

This module is perfect for OEM vendors that require only the reader module for further integration into their own custom proprietary applications.

  • All major barcode symbologies supported
  • Operational voltages of 3.3v and 5v
  • CCD Sensor options of 2048 and 3648 pixels
  • Operational temperature from 0�C to 50�C (industrial upon request)
  • Scan rate of 100 scans per second
  • CMOS RS232 data output
  • Data editing functionality supported
  • Good read and buzzer driving signals
  • 1-year warranty

CipherLab is a world leader in AIDC solutions for a wide range of industries. CipherLab's expertise is at the convergence of scanning, mobile computing, and business process design. This results more efficient supply chains, field sales services, retail operation and reduced cost of doing business in almost every sector.
